The exhaust pipe of a car is an important element for the operation of the exhaust system of the same. This is because the purpose of a car exhaust is to isolate the toxic gases from the engine from the outside. Most have seen a tailpipe, but many don’t know what does an exhaust pipe look like inside.
What is inside the exhaust pipe is what allows reducing the levels of toxic gas emissions from the engine, making the output of its gases as less polluting of the air as possible. Today we are going to learn what an exhaust pipe looks like on the inside and to do so, we must learn more about how it works.
How is an exhaust pipe composed?

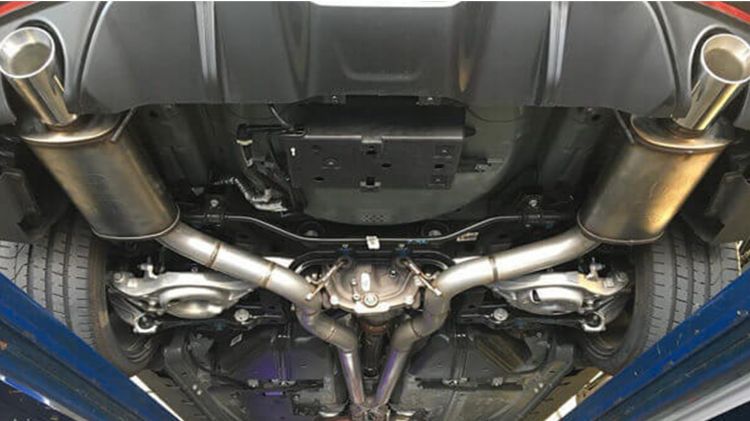

The exhaust pipe of a car is made up of a series of pipes connected. Each of these tubes is made from various robust, heat-resistant metals, such as aluminum, stainless steel, and cast iron.
Its sections come in various diameters and lengths, which will depend on the model of the car so that it can fit correctly in it. Each section of the exhaust is designed to optimize gas outlets and fulfills a specific function..

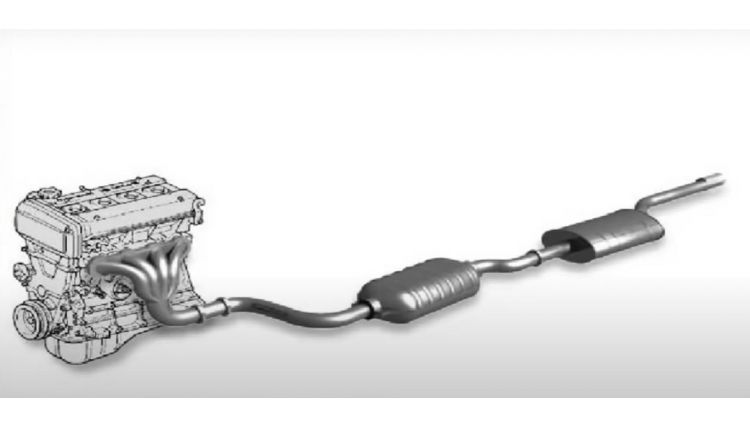

The first section is the exhaust manifold, which is located just behind the engine. and collects the combustion gases from the different cylinders of the engine. Next comes the main pipe, which connects the exhaust manifold to the rest of the exhaust system..
After the main pipe comes the muffler, which is responsible for reducing engine noise.. Finally, the tailpipe, which is the visible part of the tailpipe seen from outside the car.
An exhaust pipe inside
An exhaust reflects how engineering, safety mechanisms and engine power combine to make a modern and fuel-efficient car.
The importance of the exhaust pipe is impossible to underestimate, since this part is simply key in the design of a car. Inside, an exhaust pipe is a fascinating scientific construction.which drivers can appreciate in the way the car works.
In its simplest form, an iron exhaust pipe is designed to divert gases produced by combustion. It has an even thicker jacket that has holes that allow the passage of air and gases, so that the latter can be cooled.
This is because the exhaust gases generate a lot of heat. If this temperature is not lowered, the exhaust pipes could get too hot, which would decrease engine power.

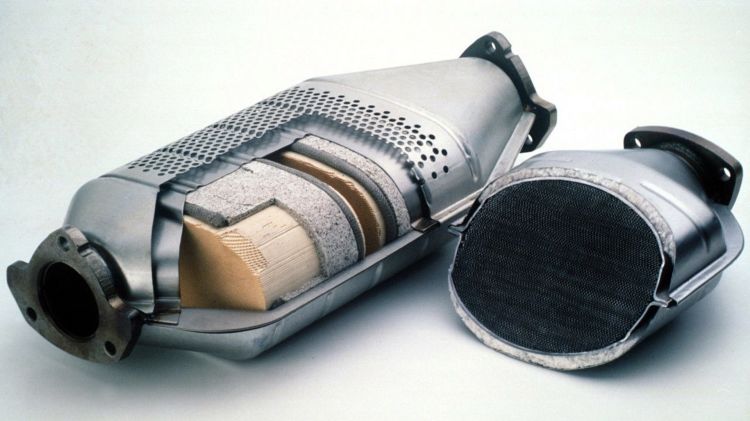

What is inside a catalytic converter?
The catalytic converter of an exhaust pipe is a part that acts as a cleaning device that helps reduce the levels of harmful elements in the exhaust gases. It consists of a support layer coated with an alloy of palladium, ruthenium and rhodium. This alloy is deposited using a chemical spray deposition process.
The alloy of palladium, ruthenium and rhodium allows the oxidation and chemical reduction of harmful gases. This oxidation/reduction occurs when the oxidizing agents combine with the fuels in the reaction that occurs within the catalyst.
When fuels are heated by starting a car engine, sulfur oxide, nitrogen, carbon monoxide and other harmful compounds are released. These compounds are catalyzed to form an element that is less harmful to the environment.
That is, the catalyst acts like a sponge to capture the toxic products in the exhaust gases. It absorbs them and transforms them into an element that is less harmful to the ozone layer.

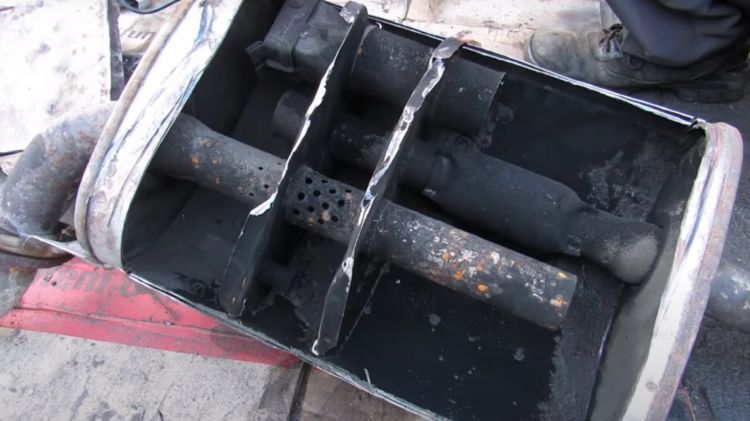

What is inside the muffler of an exhaust pipe?
An exhaust muffler is a device that connects in line with the outlet of an exhaust system. Its purpose is to reduce the noise that reaches the exit of the same, reducing the pressure exerted by the flow of gases..
For this, it has different mechanisms, which go through flashing channels, resonator tubes, refraction and diffusion fields, and reinforcement absorption bowls.
Inside, the muffler consists of a strong metal shell, usually with some welding for better fit and durability. This casing is usually made rectangular or cylindrical and comes in a variety of sizes to fit the inlet and/or outlet of the car’s exhaust system.
Some models also include a double shell for added protection. Inside there is a set of ducts that form channels for the exhaust gases to pass through the muffler.. These can be thin tubes, perforated plates, and spirally wound.
Some mufflers also contain resonance receptors, which contribute to sound reduction. They generally consist of a wire mesh spirally wound around one or more switch tubes. Mufflers also include absorption bowls that reduce the amount of sound escaping from the muffler opening.
The components of an exhaust pipe have a limited useful life.
Although exhaust pipes are typically long-lasting components, they have a limited lifespan and will eventually need replacement.. The useful life of an exhaust pipe depends on factors such as the material from which it is made, the use that is given to the car and the proper maintenance that is provided.
For example, an exhaust made of carbon steel can last a few years, while one made of stainless steel or titanium can last much longer. However, it is important to note that, Even with the best maintenance, all exhaust pipes will eventually have to be replaced..
